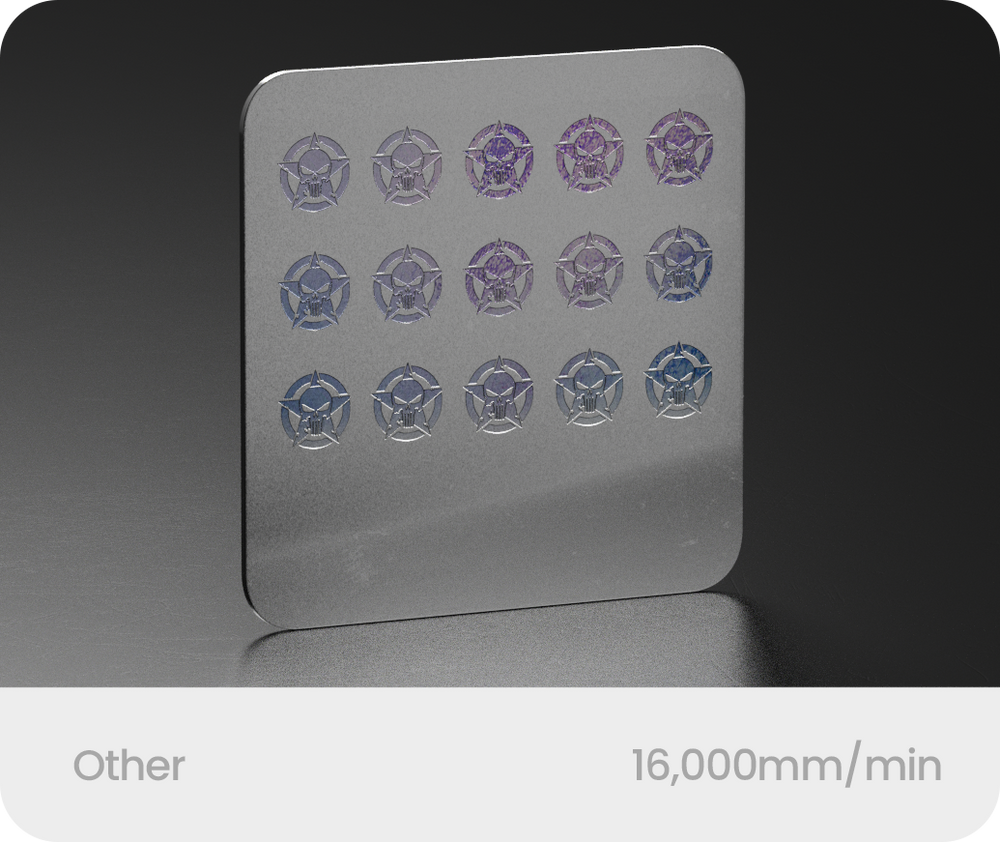

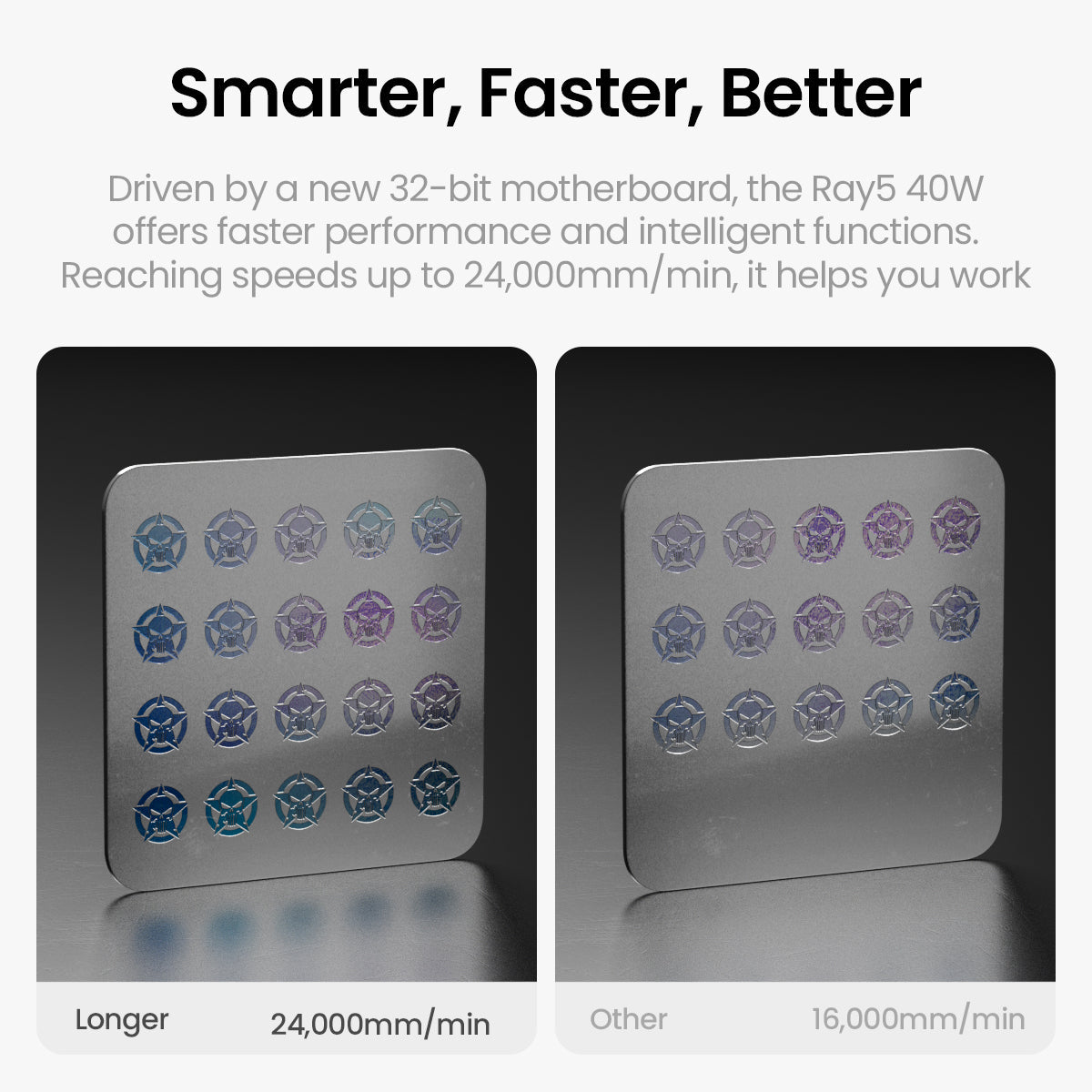

Smarter, Faster, Better
Driven by a new 32-bit motherboard, the Ray5 40W offers faster performance and intelligent functions.
Reaching speeds up to 24,000mm/min, it helps you work smarter, faster, and more efficiently.
Basic
View full details

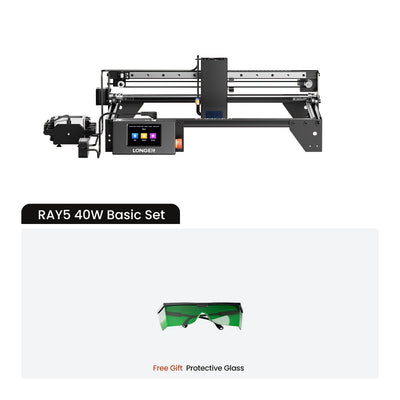

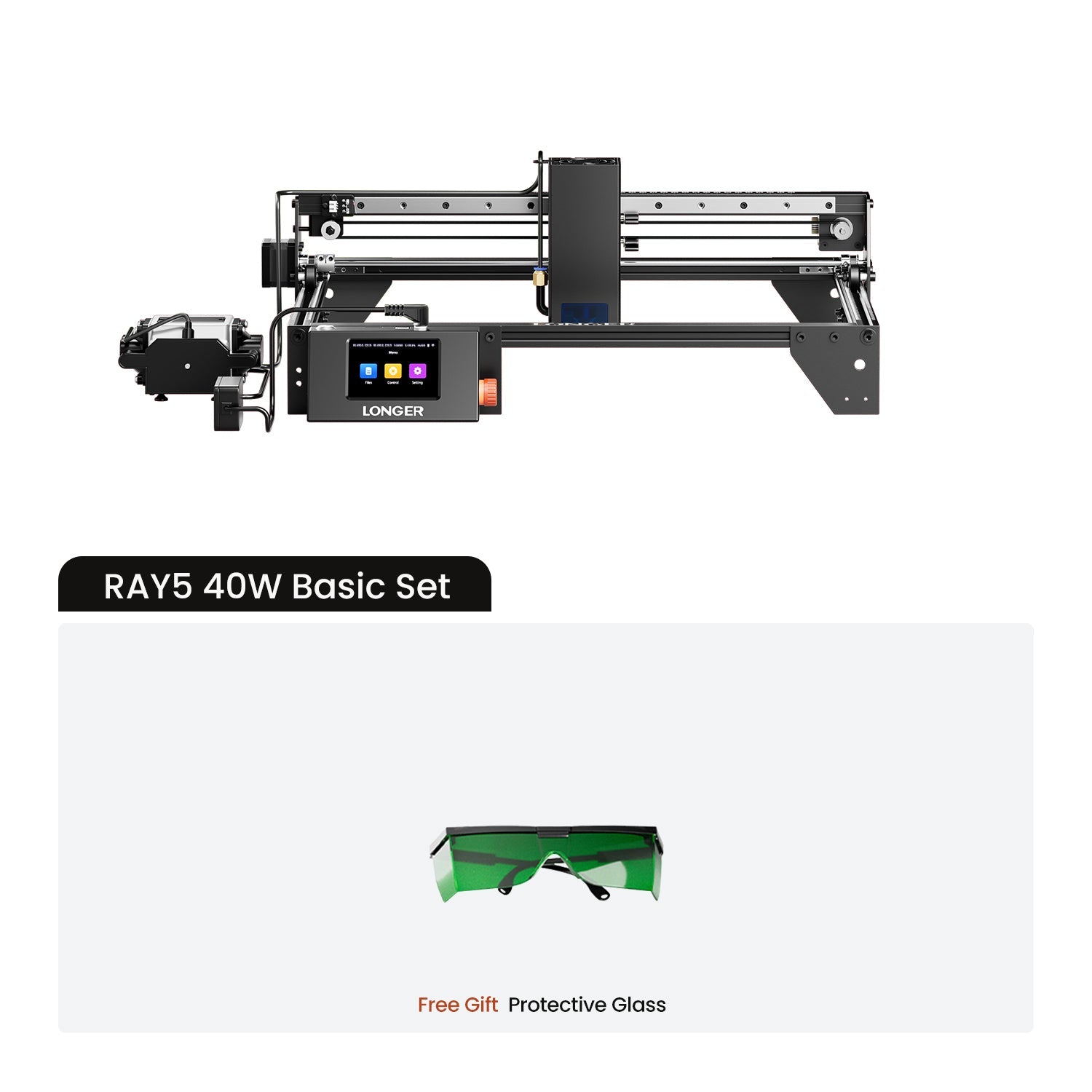

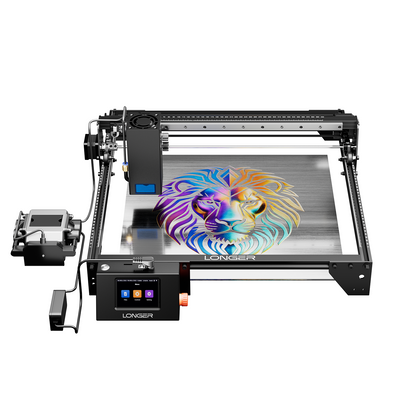

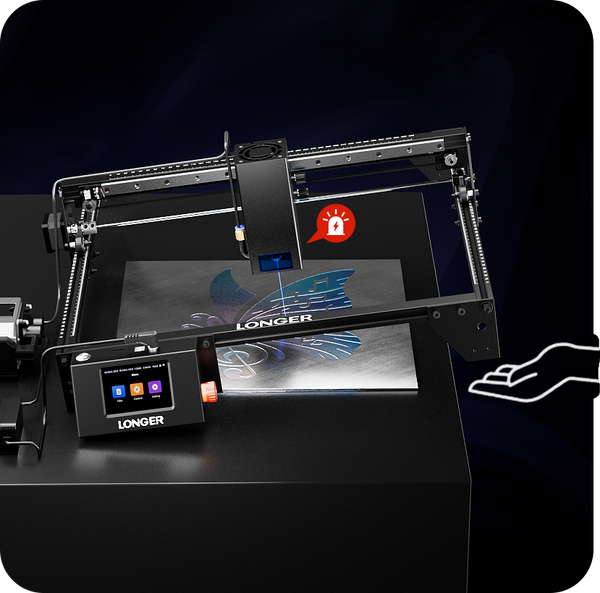

Longer Ray5 40W Laser Engraver
Sale price$679.99Regular price
$999.99
Shipping calculated at checkout.
Save $320.00
- 40W Ultra-Fine Laser: 8-beam compression, 0.10 × 0.15 mm spot, cuts 20 mm basswood or 0.15 mm stainless steel in one pass.
- High-Speed & Stable Motion: 15 mm(0.59inch) industrial rail + 4-roller Y-axis for smoother accuracy, up to 24,000 mm/min engraving speed.

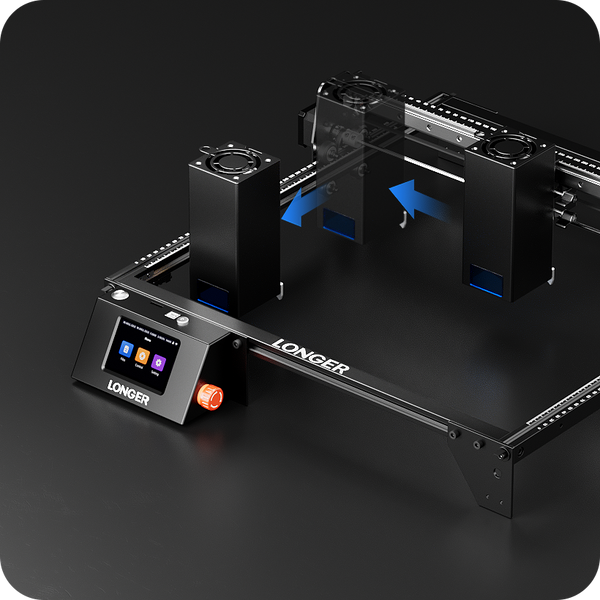

- Smart & Easy Control: 3.5" touchscreen, auto air-assist, and dovetail-mounted laser head for quick adjustments.
- Seamless Connectivity: Upgraded Wi-Fi antenna, plus USB, TF card, and App control.
- Safe & Reliable Operation: Emergency stop, flame & motion sensors, limit switches, and eye protection.
- Lightweight & Versatile: Just 5.73 kg with 385 × 385 mm(15.16*15.16inch) workspace, tool-free head adjustment, supports LaserGRBL, LightBurn, and LaserBurn.

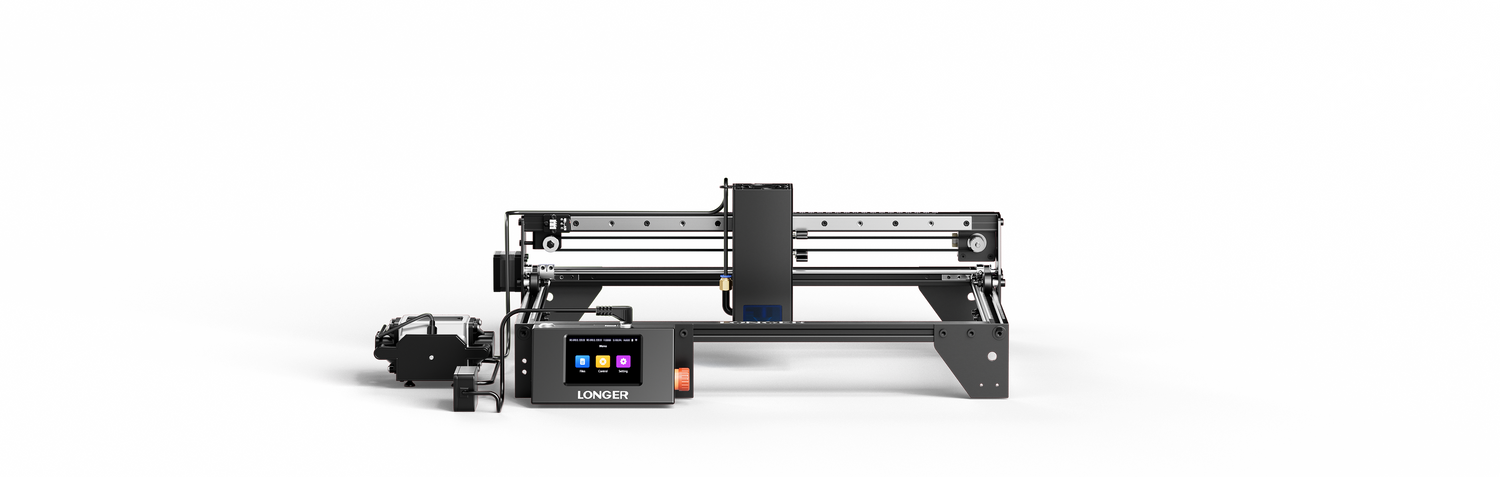

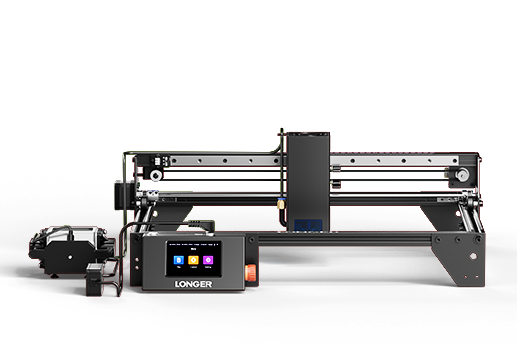

LONGER Ray5 40W
The Ray5 You Know - Reinvented for More

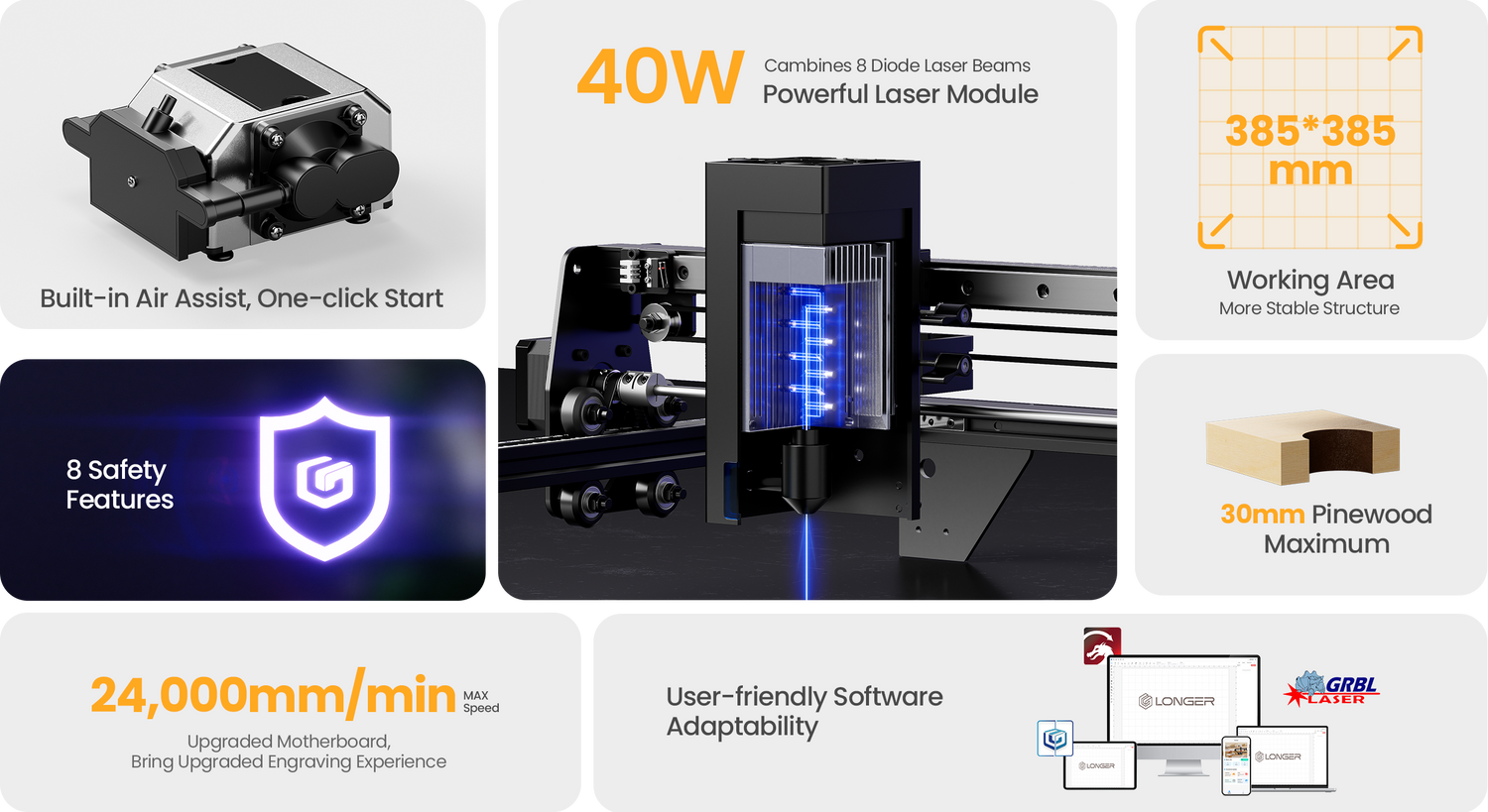

Features That Makes Ray5 40W Stand Out
Stronger, Also Thicker
The Ray5 Series You Know, Now More Powerful Than Ever!
Introducing our Ray5 40W, the first high-power model in the Ray5 series, effortlessly cuts through a wide range of materials with precision and consistency. Ray5 40W can achieve single-pass cuts of up to 20mm basswood, and push the limits with up to 30mm pine. Perfectly designed to meet your advanced engraving and cutting needs.

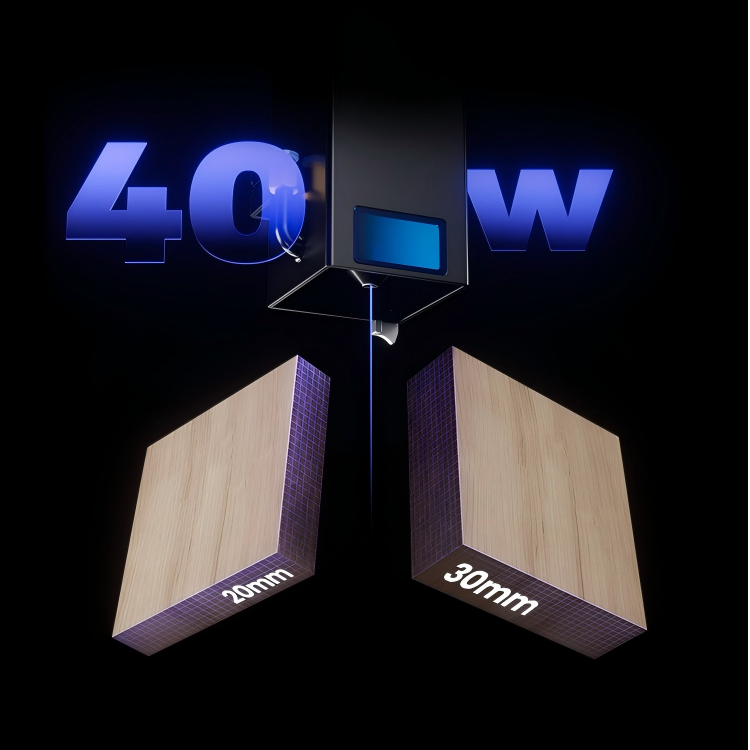

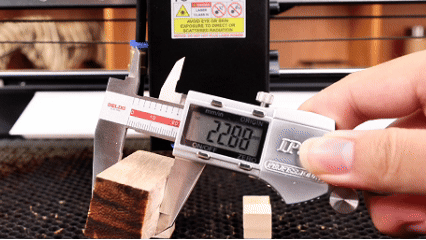

Cut 30mm Pinewood Maximum
Cut 20mm Basswood in One Pass

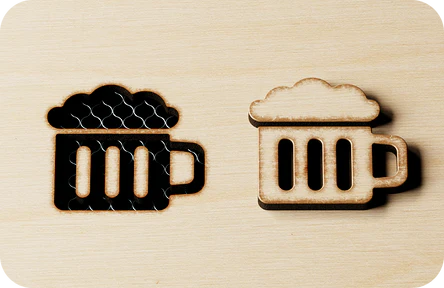

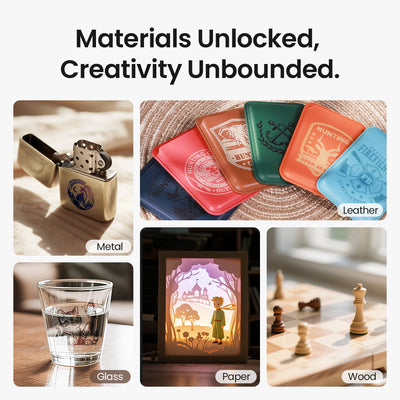

Unlock Materials, Unleash Creativity.
With Ray5 40W, you can engrave and cut hundreds of materials, creativity is free from limits.
Unlock Materials, Unleash Creativity.
With Ray5 40W, you can engrave and cut hundreds of materials, creativity is free from limits.

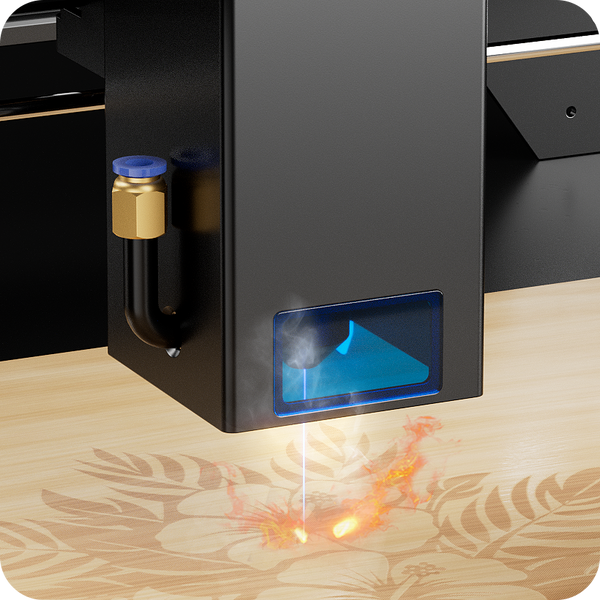

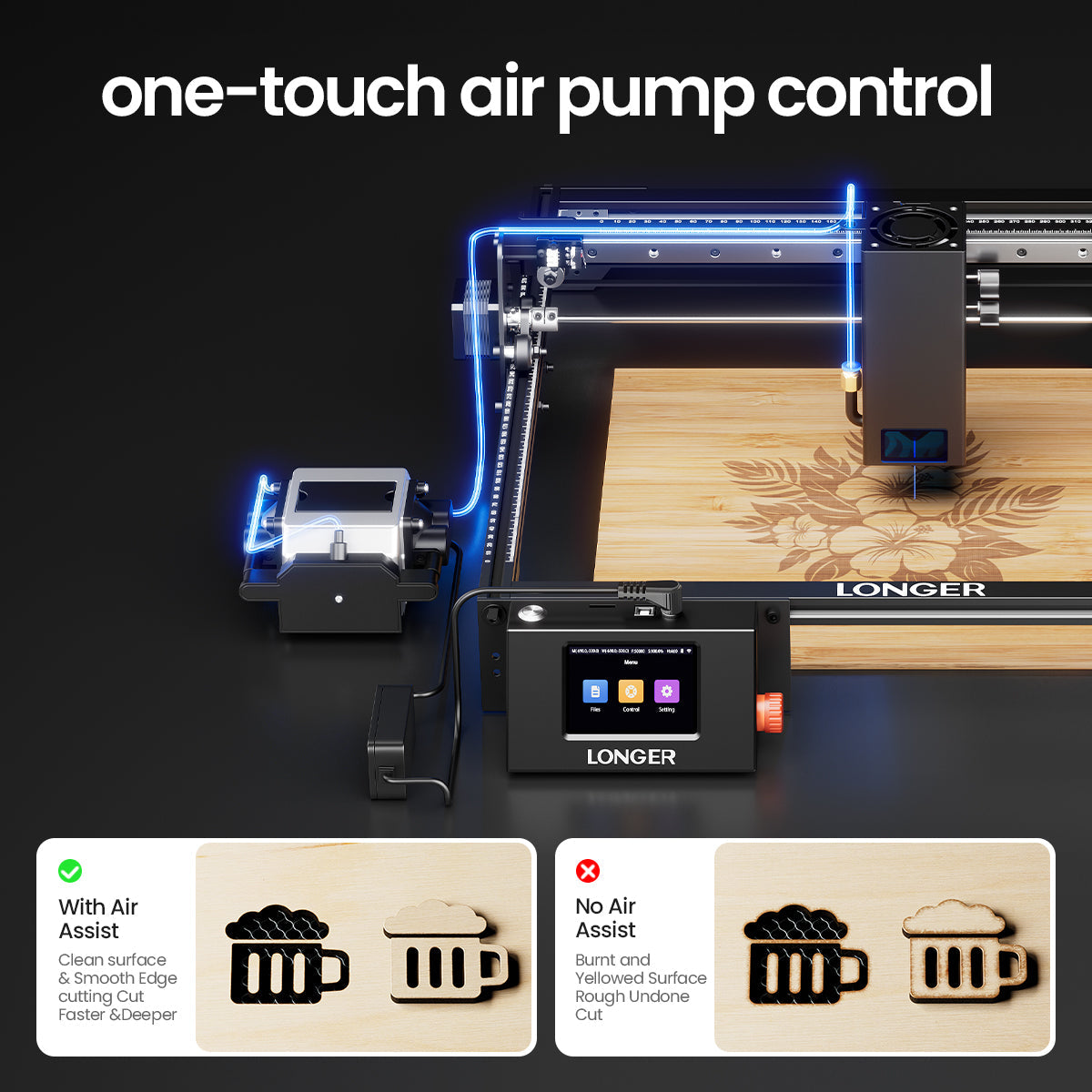

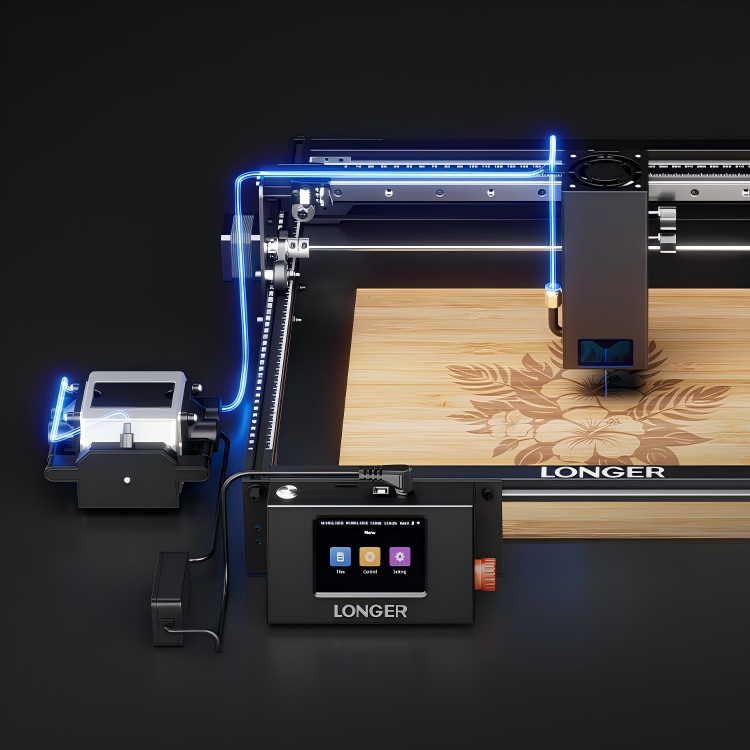

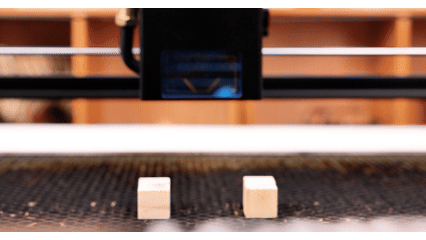

Built-in Air Assist for Perfect Precision
Built-in Air Assist for Perfect Precision

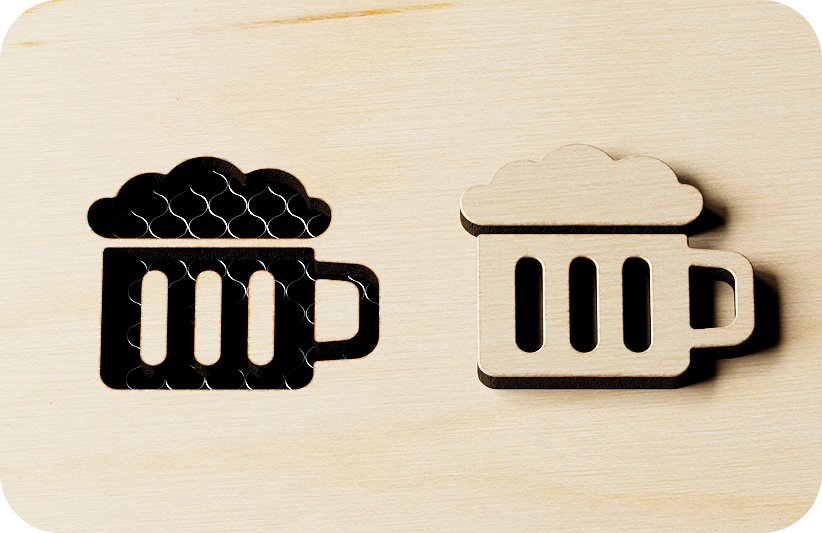

With Air Assist
Clean Surface & Smooth Edge
No Air Assist
Burnt & Yellowed Surface Rough Undone Cut
With Air Assist
Clean Surface & Smooth Edge
No Air Assist
Burnt & Yellowed Surface Rough Undone Cut

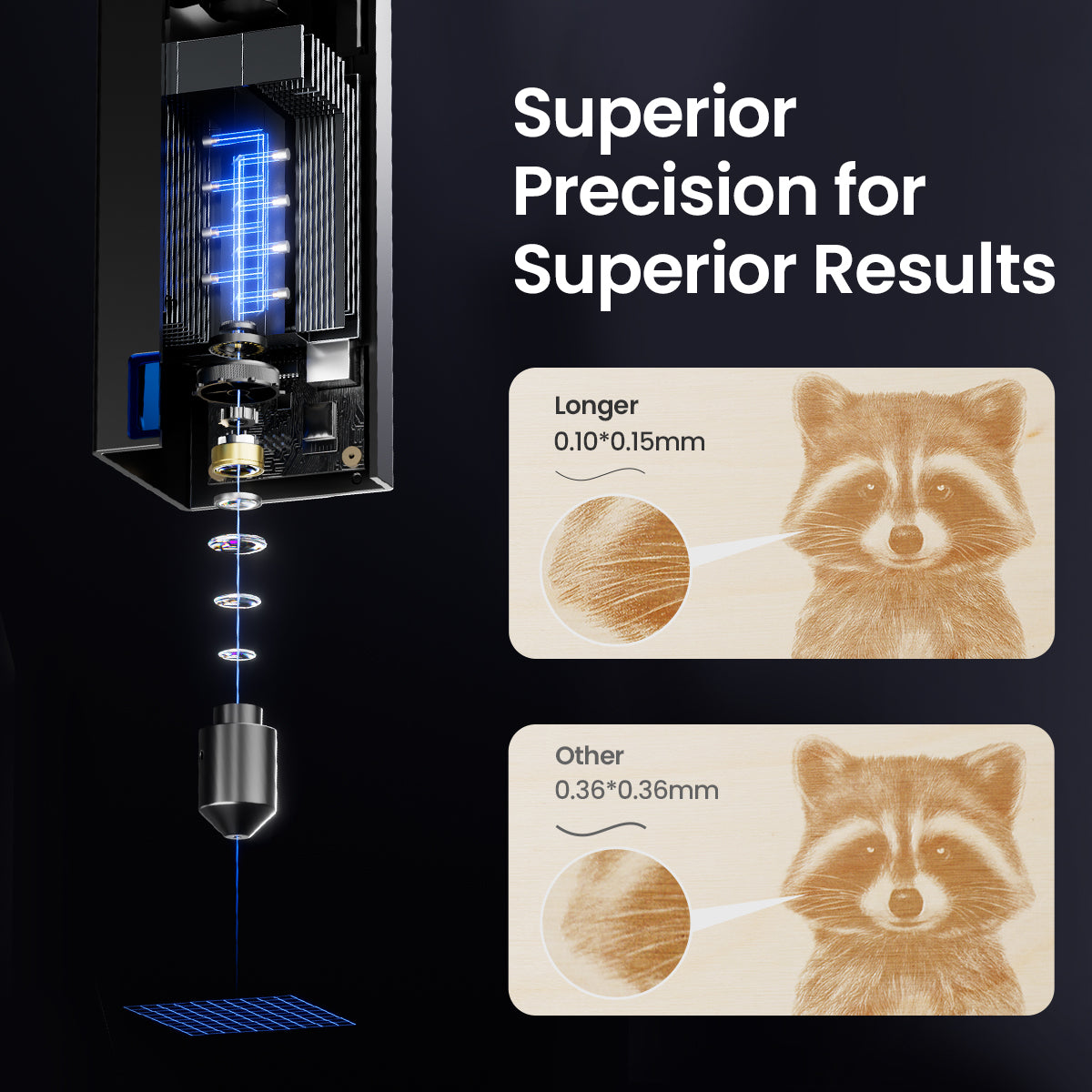

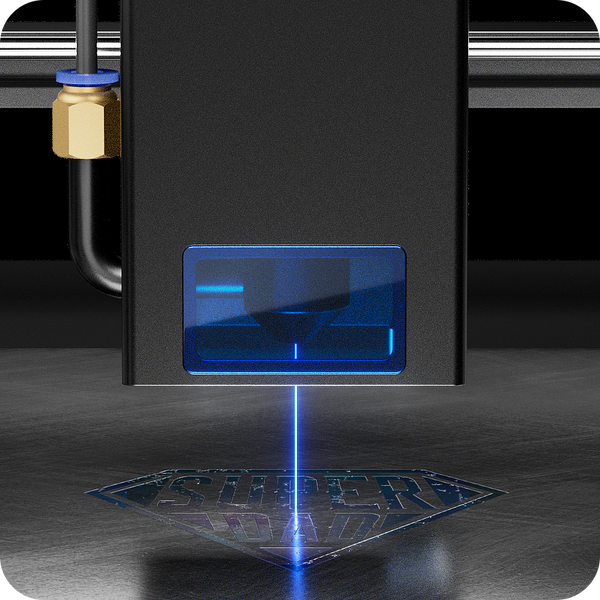

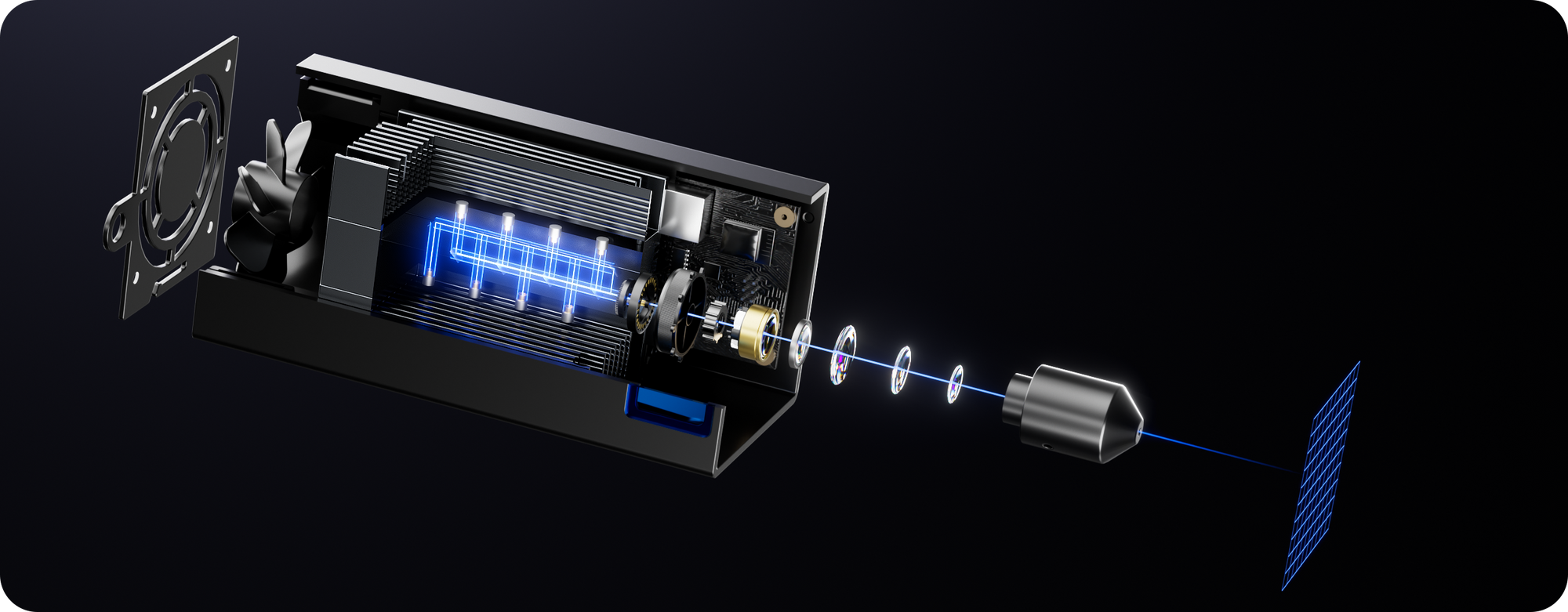

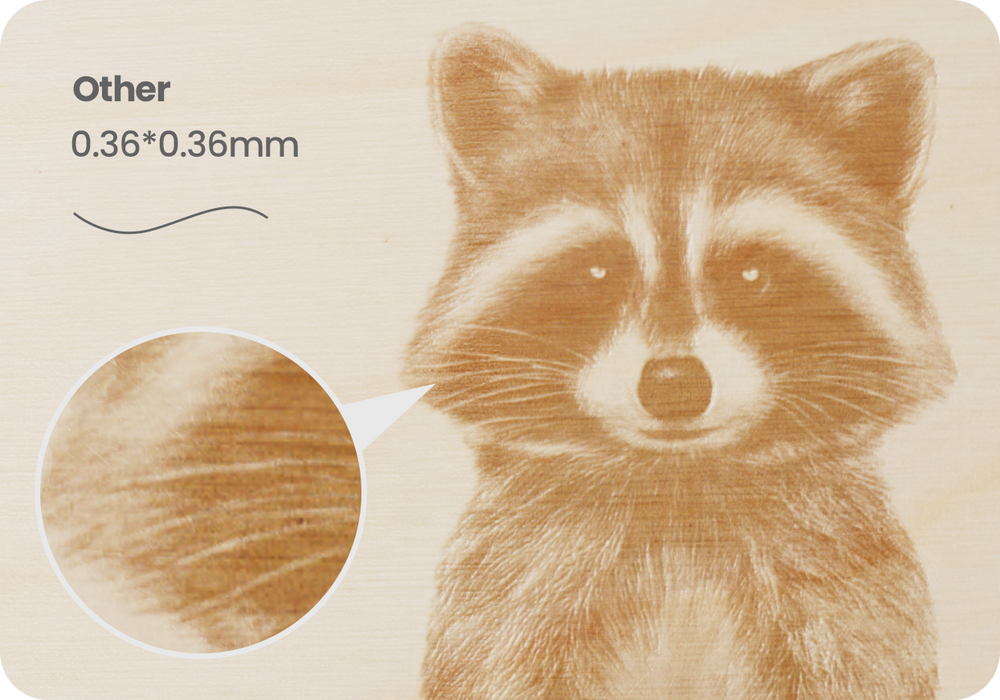

Superior Precision for
Superior Results
Achieve 0.10*0.15mm precision with an ultra-fine light spot,
bringing every detail of your ideas to life — flawless at any scale.
Upgraded Structure for
Flawless Operation

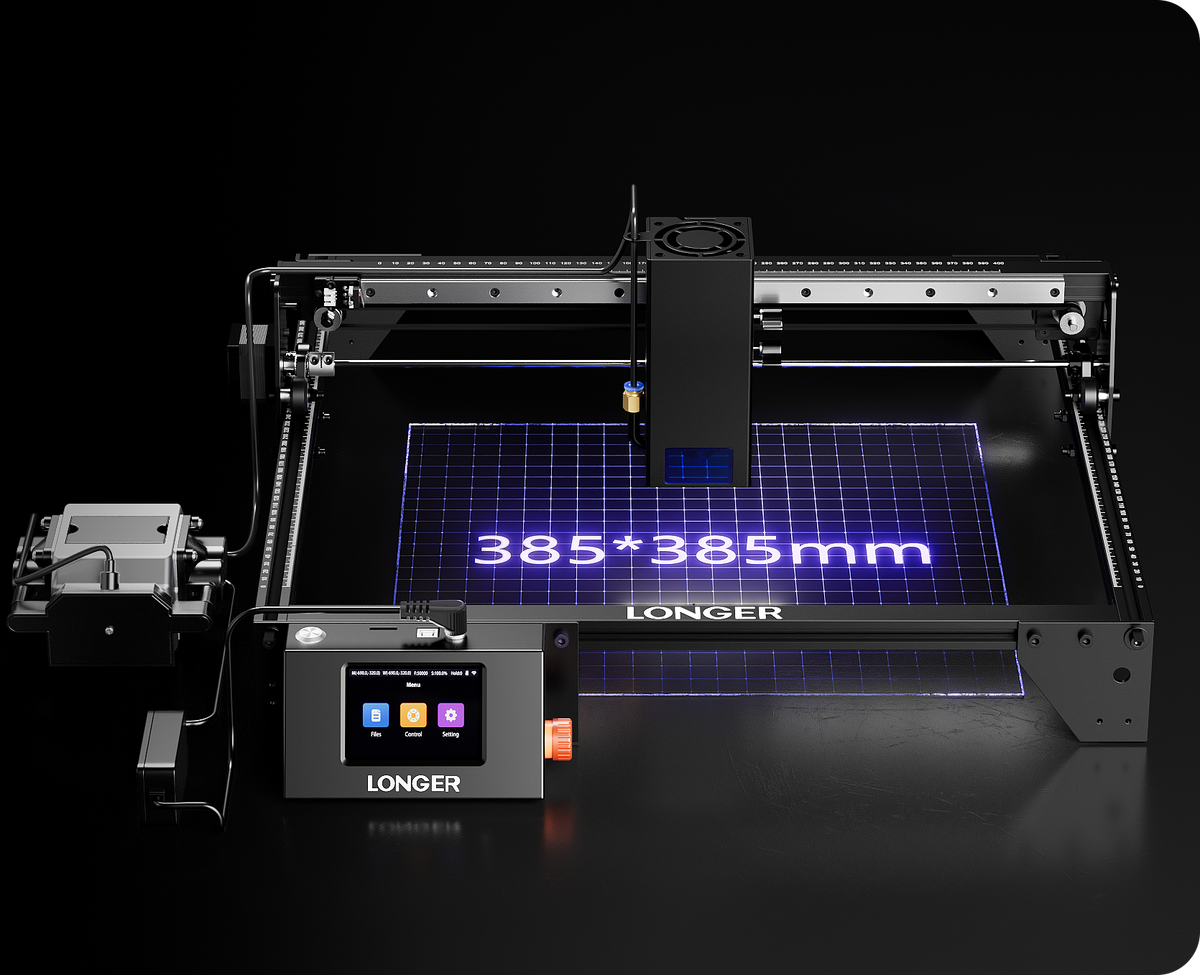

385x385mm Working Area
With a generous 385×385mm(15.16*15.16inch) working area, you have more space to bring bigger and bolder ideas to life.

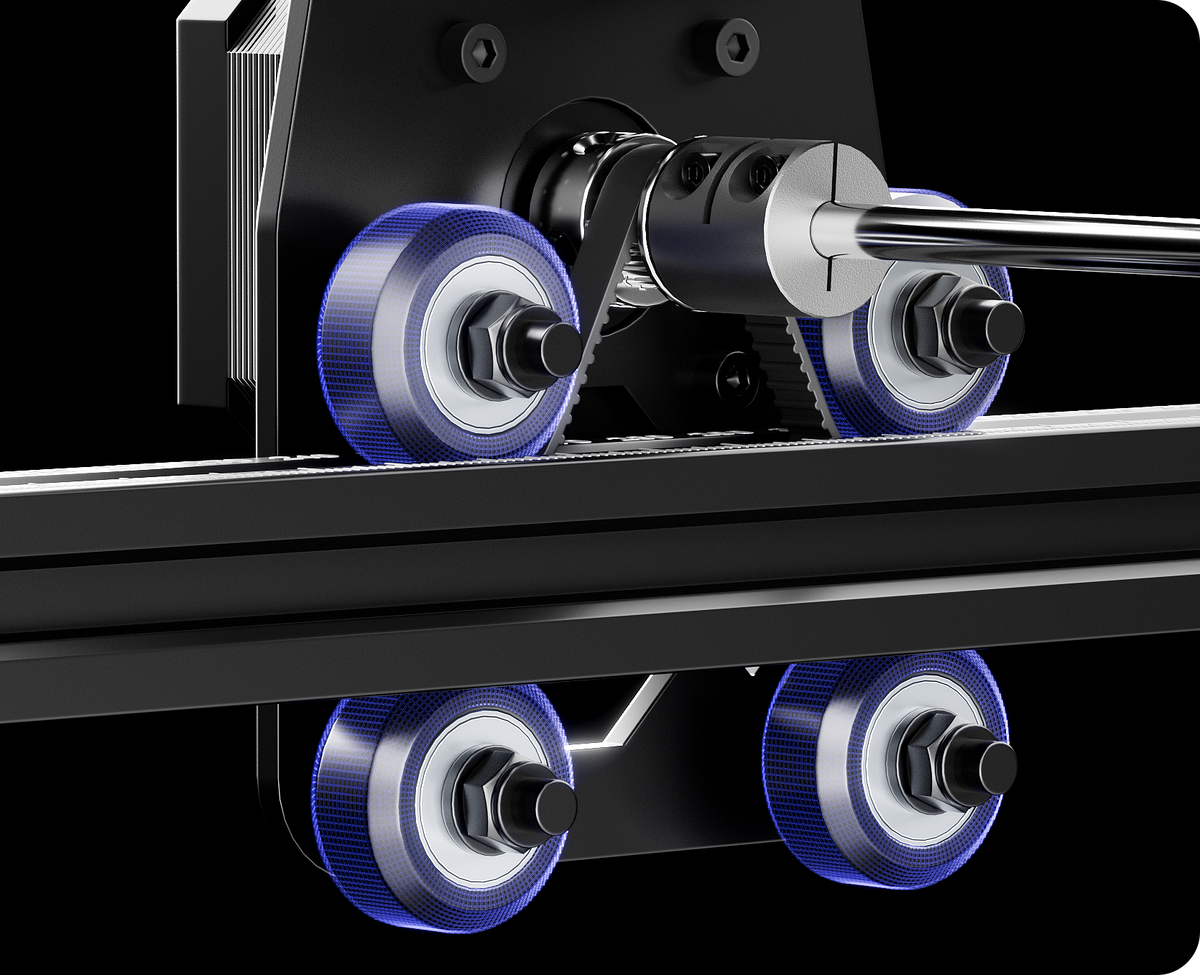

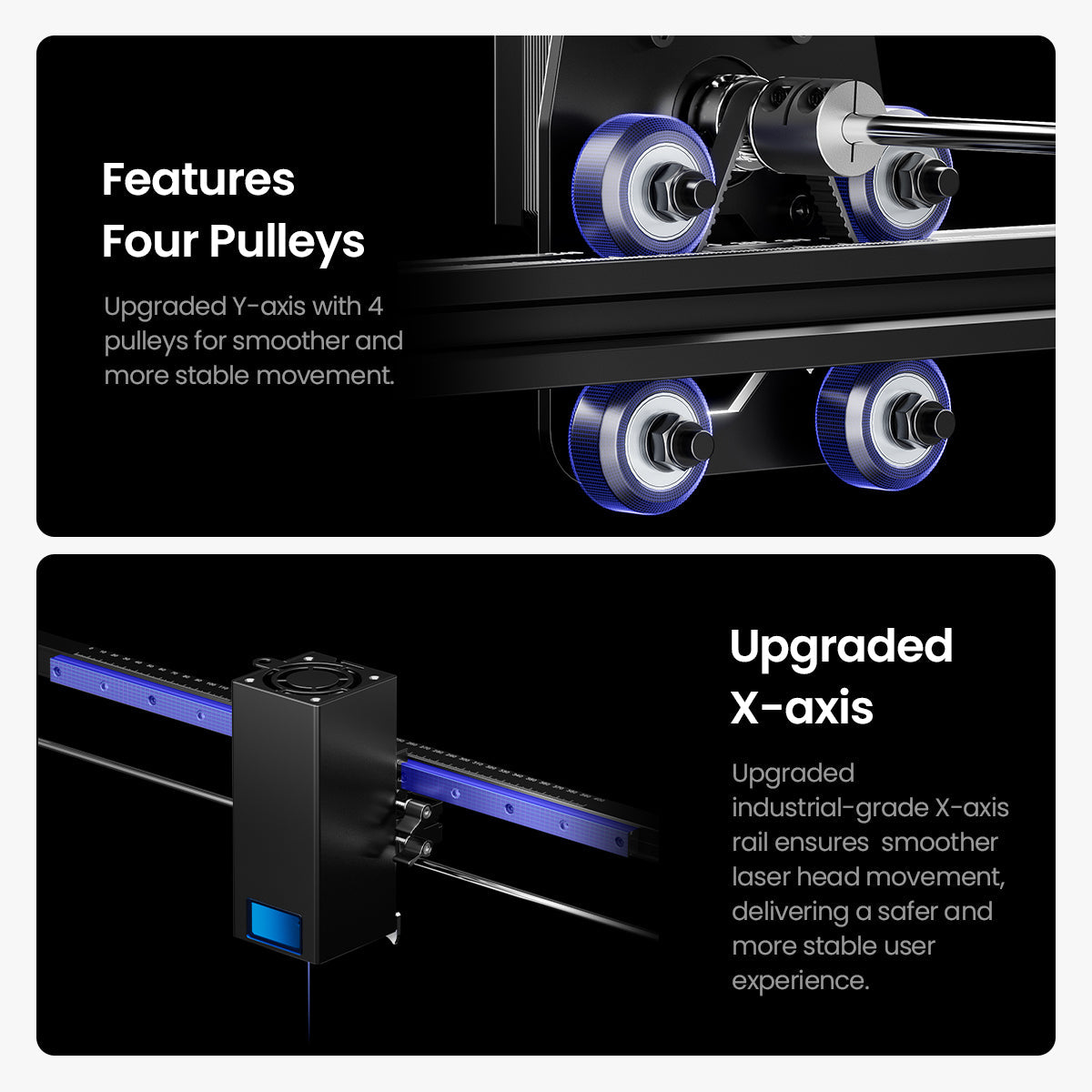

Features Four Pulleys
Upgraded Y-axis with 4 pulleys for smoother and more stable movement.

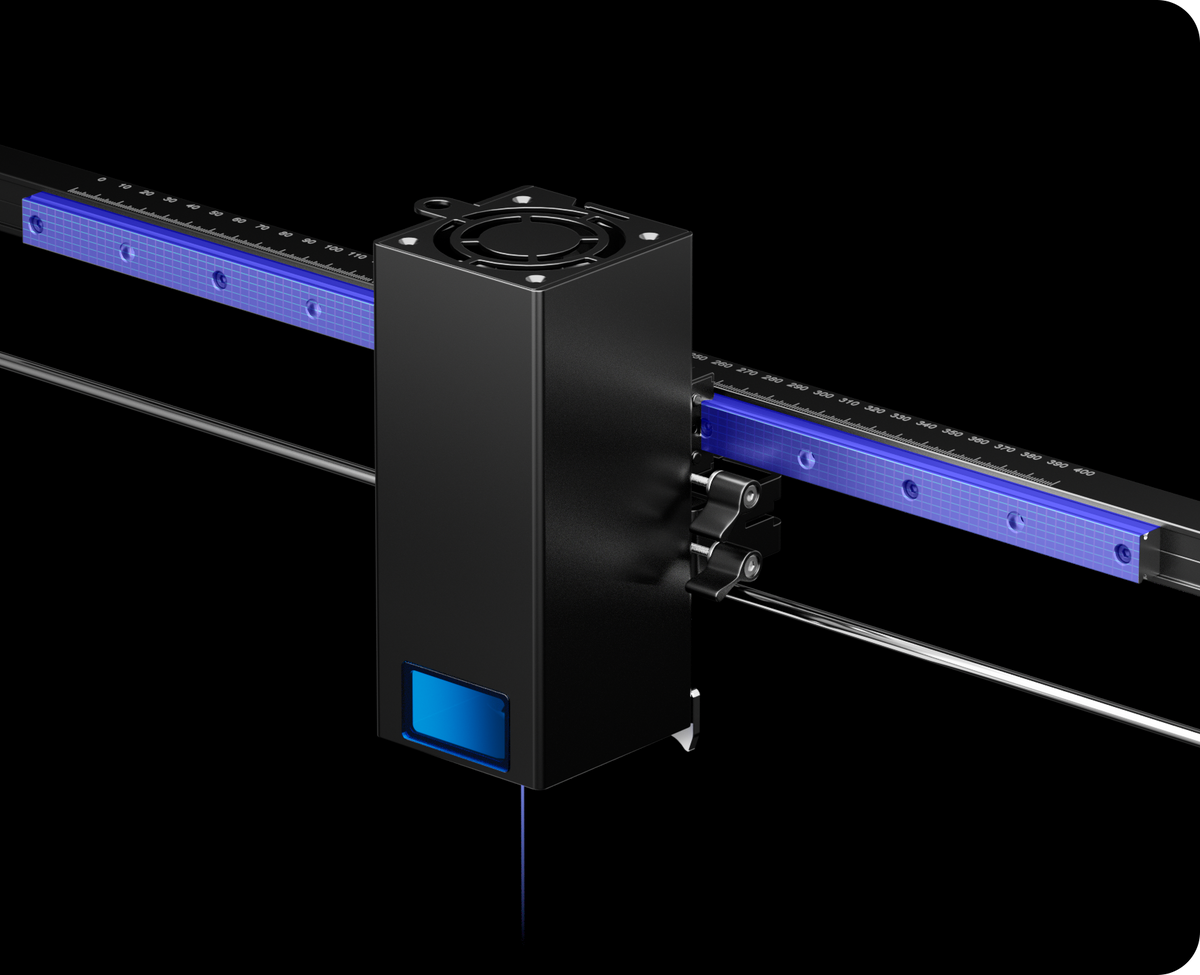

Upgraded X-axis
Upgraded industrial-grade X-axis rail ensures smoother laser head movement, delivering a safer and more stable user experience.

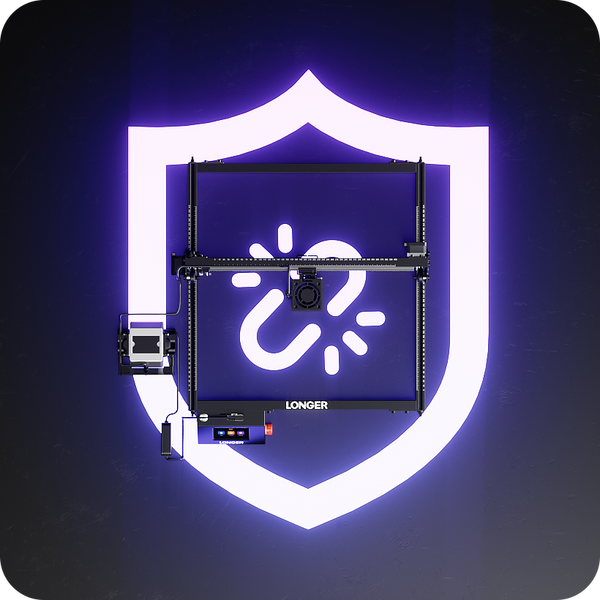

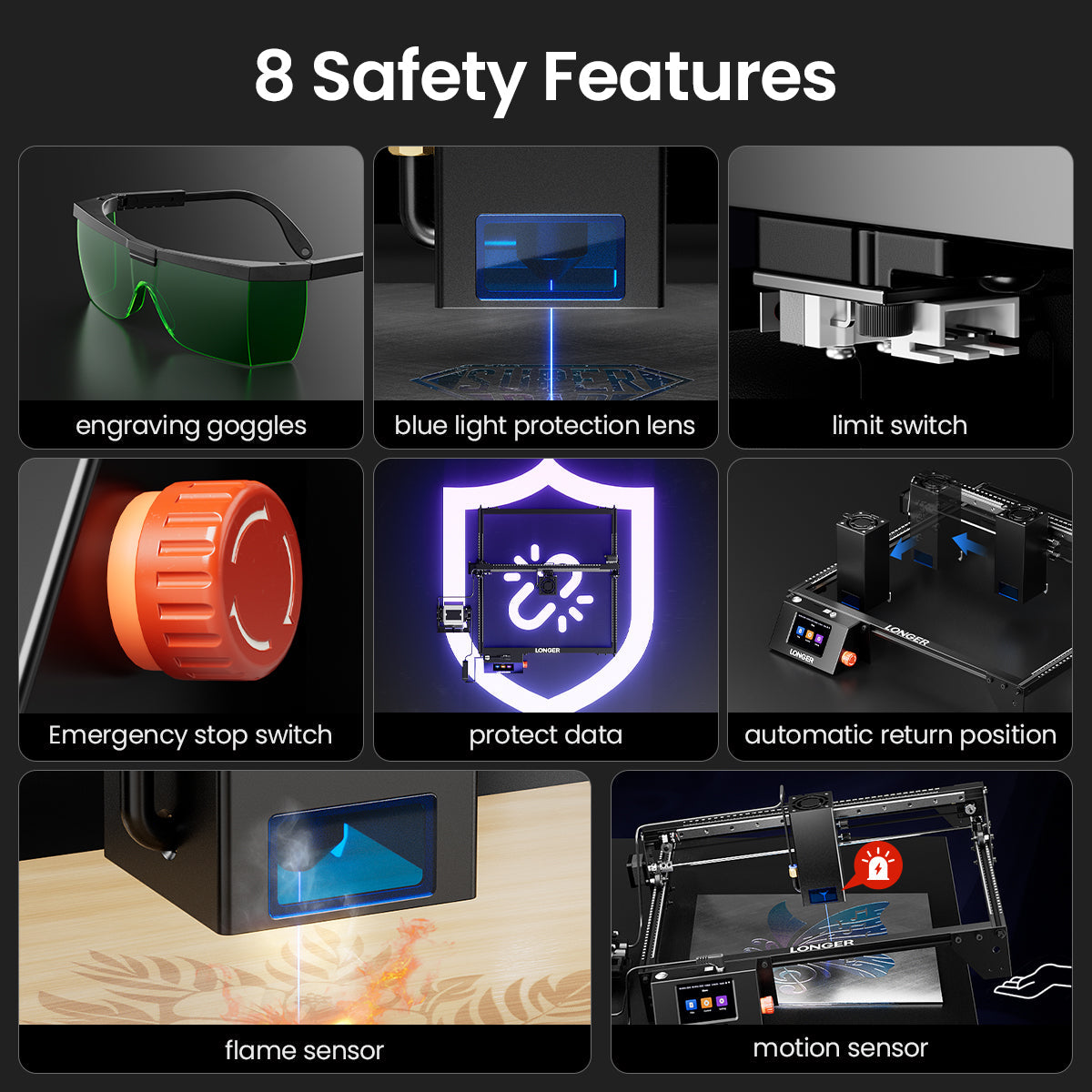

8 Safety Features Protection Built Into Every Detail
Featuring 8 advanced safety measures including emergency stop and limit switches, designed to
provide all-around protection during every engraving session.

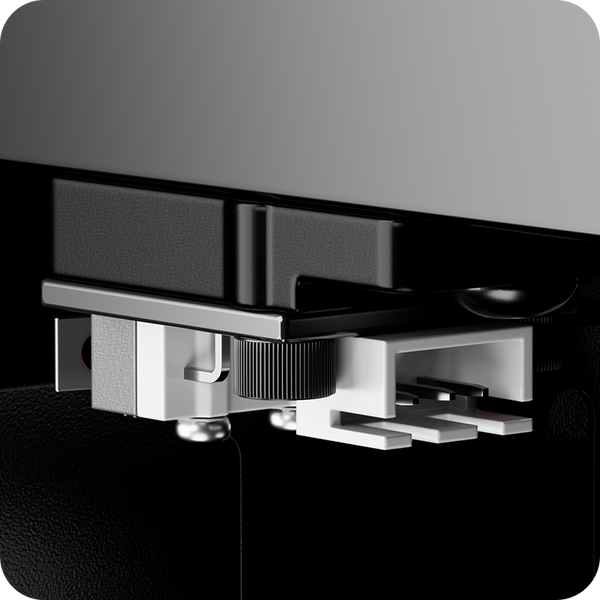

Limited Switch
Motion Protection
Auto Homing After Alarm

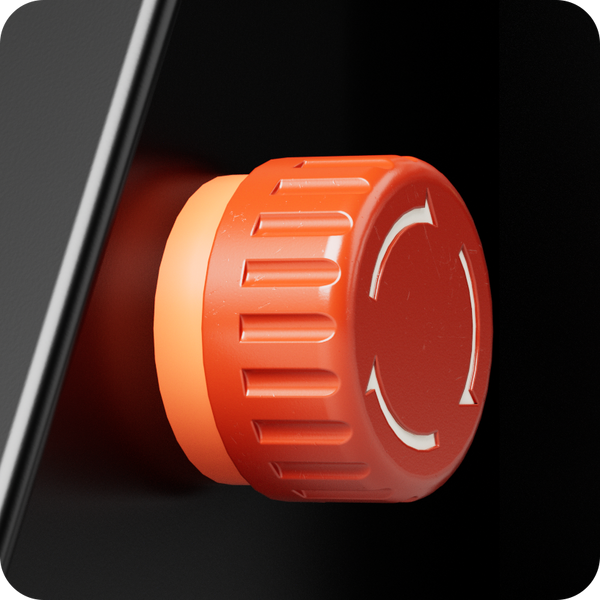

Emergency Stop Switch
Blue Light Filter Lens
Data Loss Protection

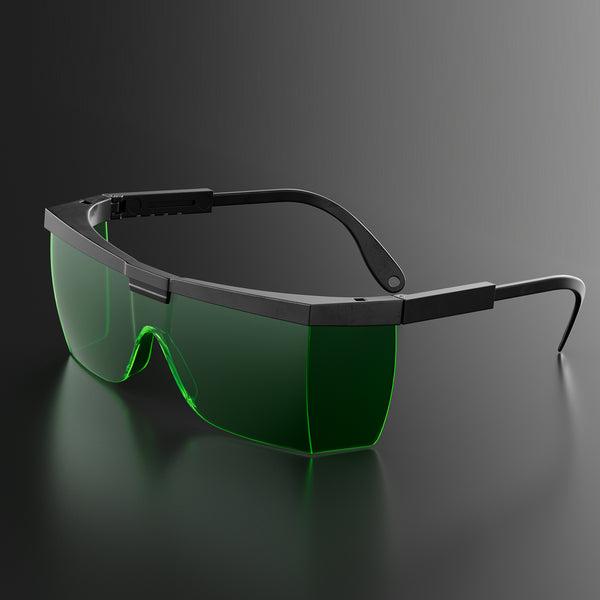

Protective Glasses
Flame Detection

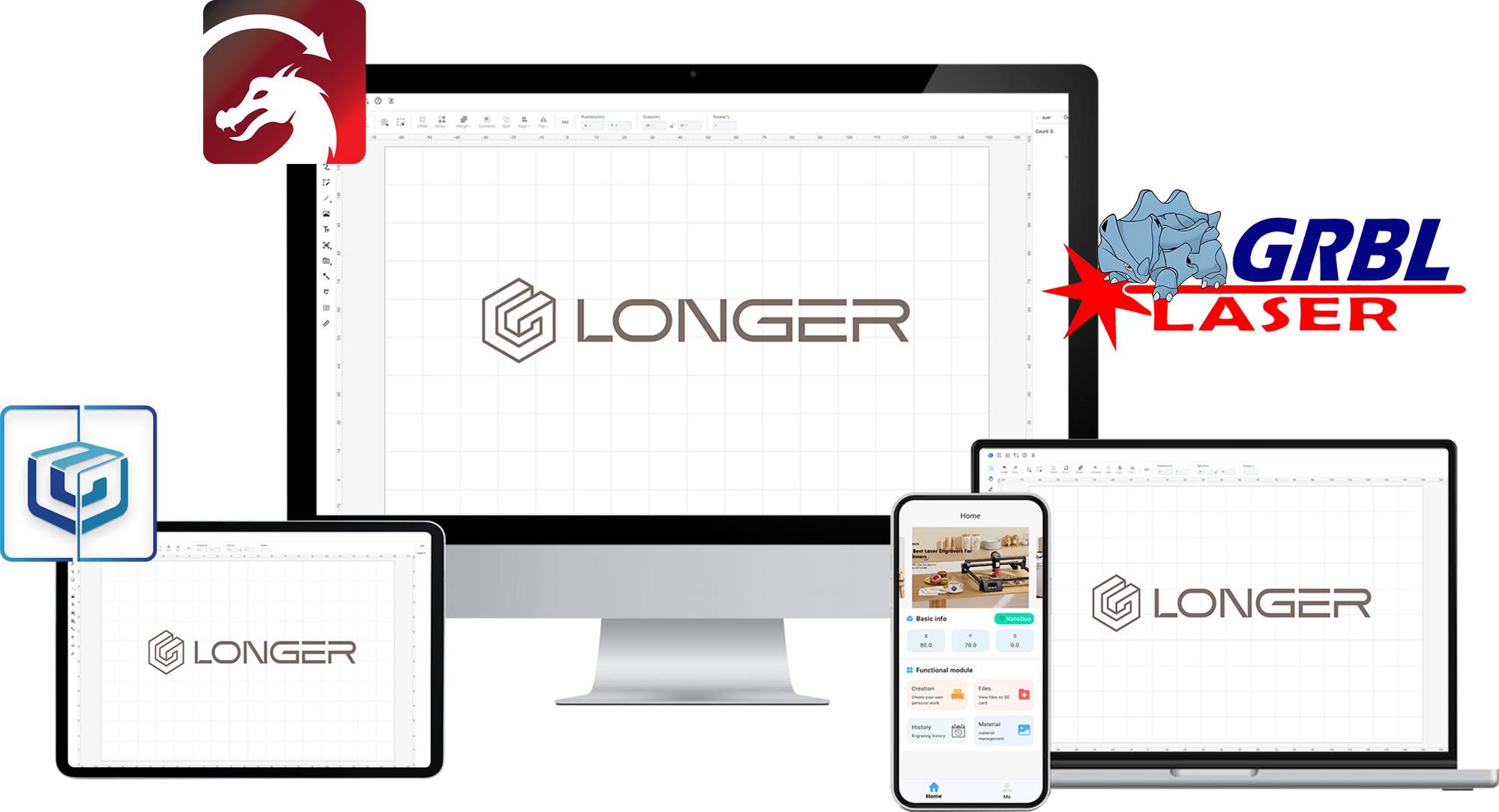

Powerful Software Widely Compatibility
Compatible with a variety of systems, including Windows, Mac OS and Linux, and also software such as LightBurn, LaserGRBL and LaserBurn.

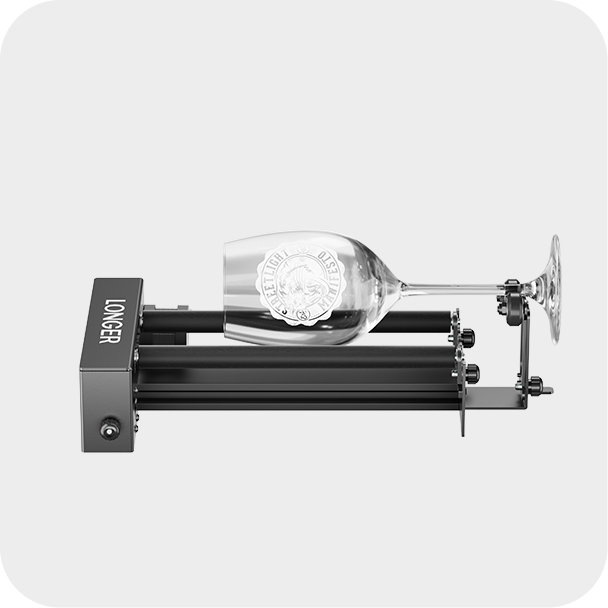

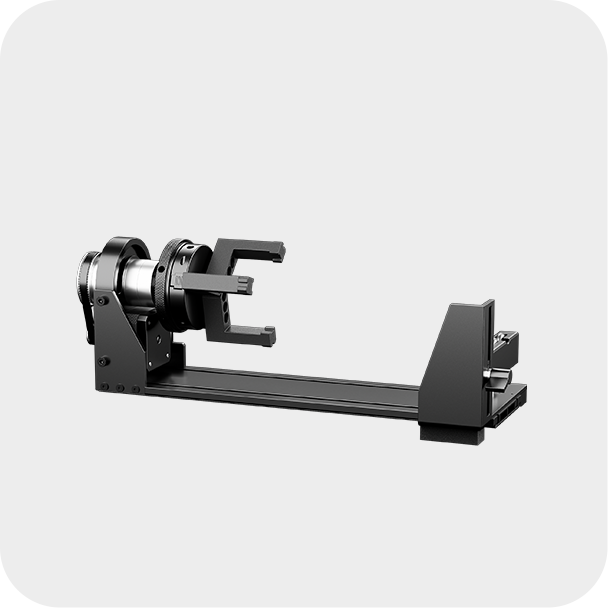

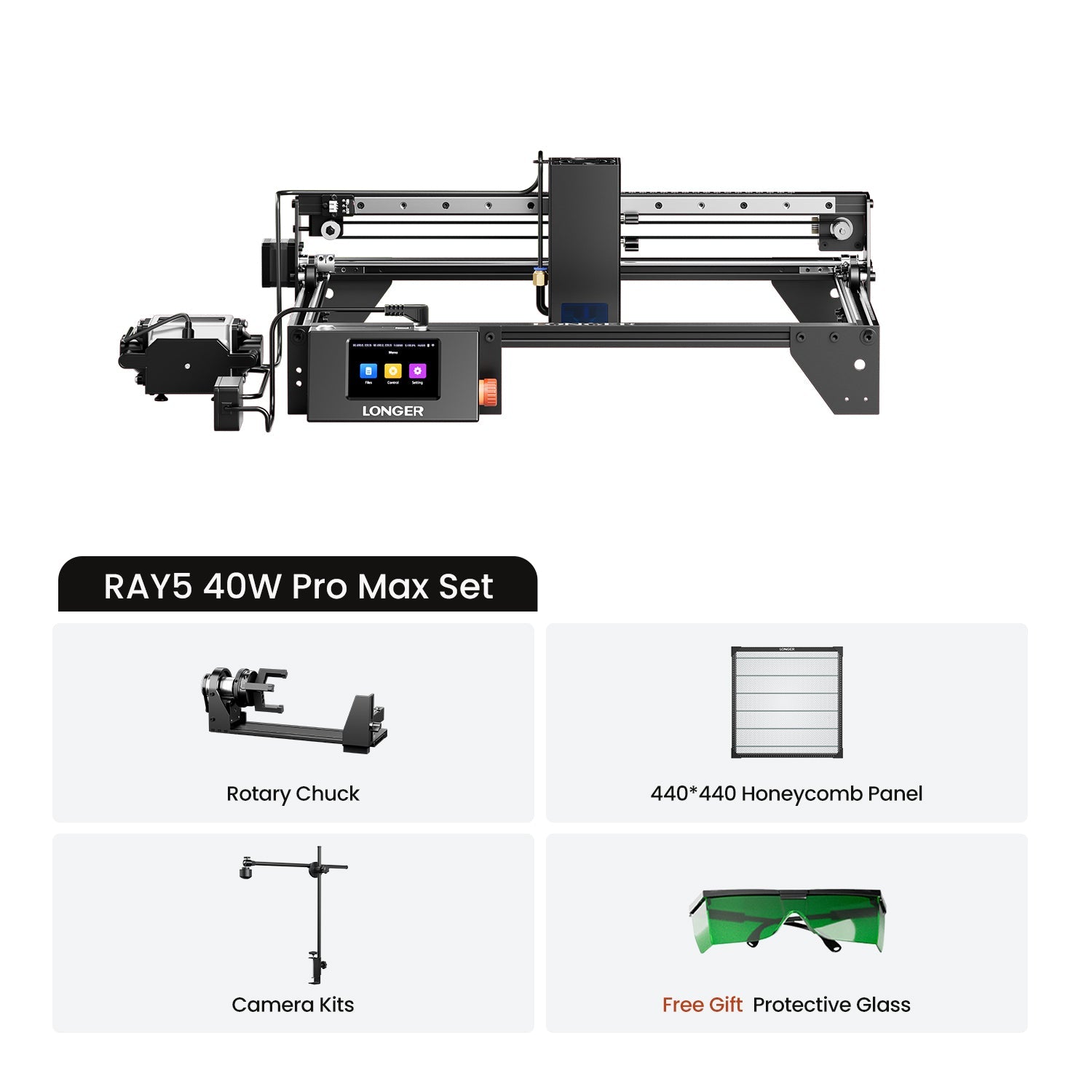

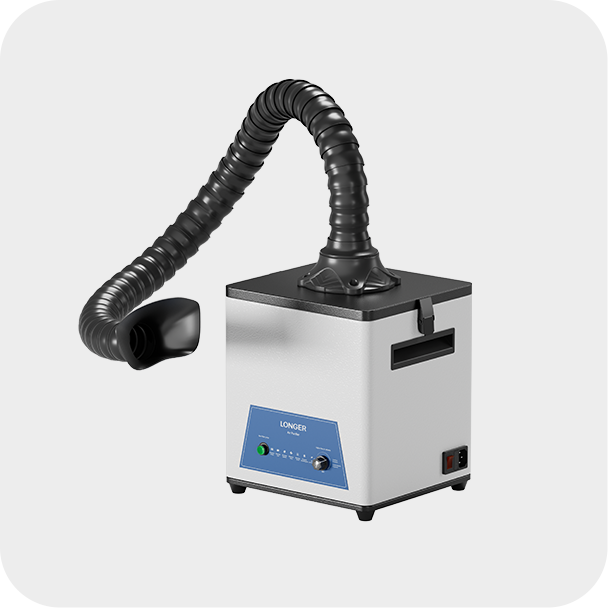

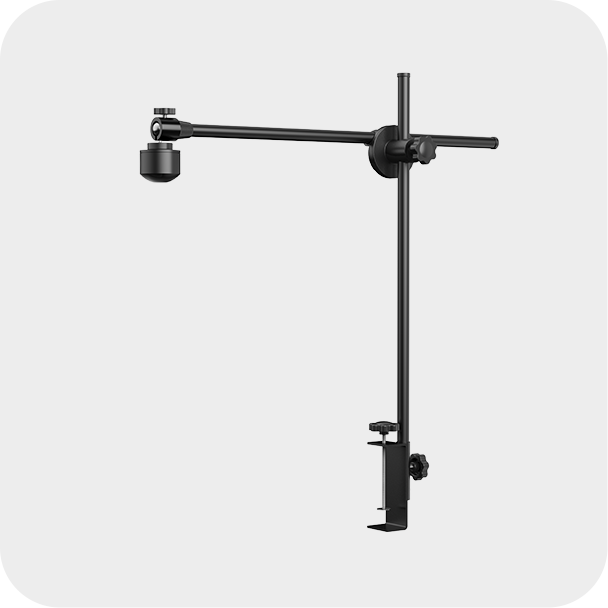

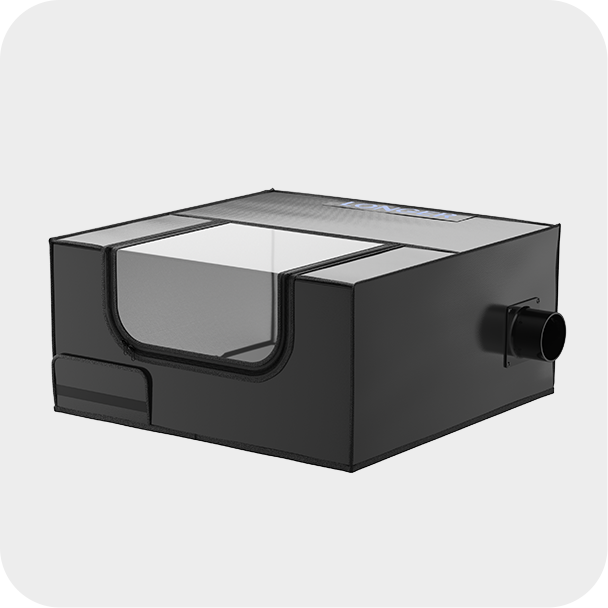

Diverse Accessories, Meet Your Every Need
Specifications
Machine Model
Ray5 40W
Dot Size at Optimal Focus
0.10 × 0.15 mm
Working Area
385 × 385 mm(15.16*15.16inch)
Laser Class
FDA Class IV
Laser Technology
Four Diode Laser with FAC
Software
LaserBurn, LaserGRBL, LightBurn
Wavelength
450–460 nm
Input Image Format
JPG, PNG, BMP, GIF, SVG, AI
Optical Power Output
44–48 W
Connection Type
USB, SD Card, Wi-Fi
Focus Type
50 mm Focal Length
Max Power Input
DC 24V 9A
Operating System
LaserBurn: Windows, macOS, Linux / LaserGRBL: Windows / LightBurn: Windows, macOS, Linux

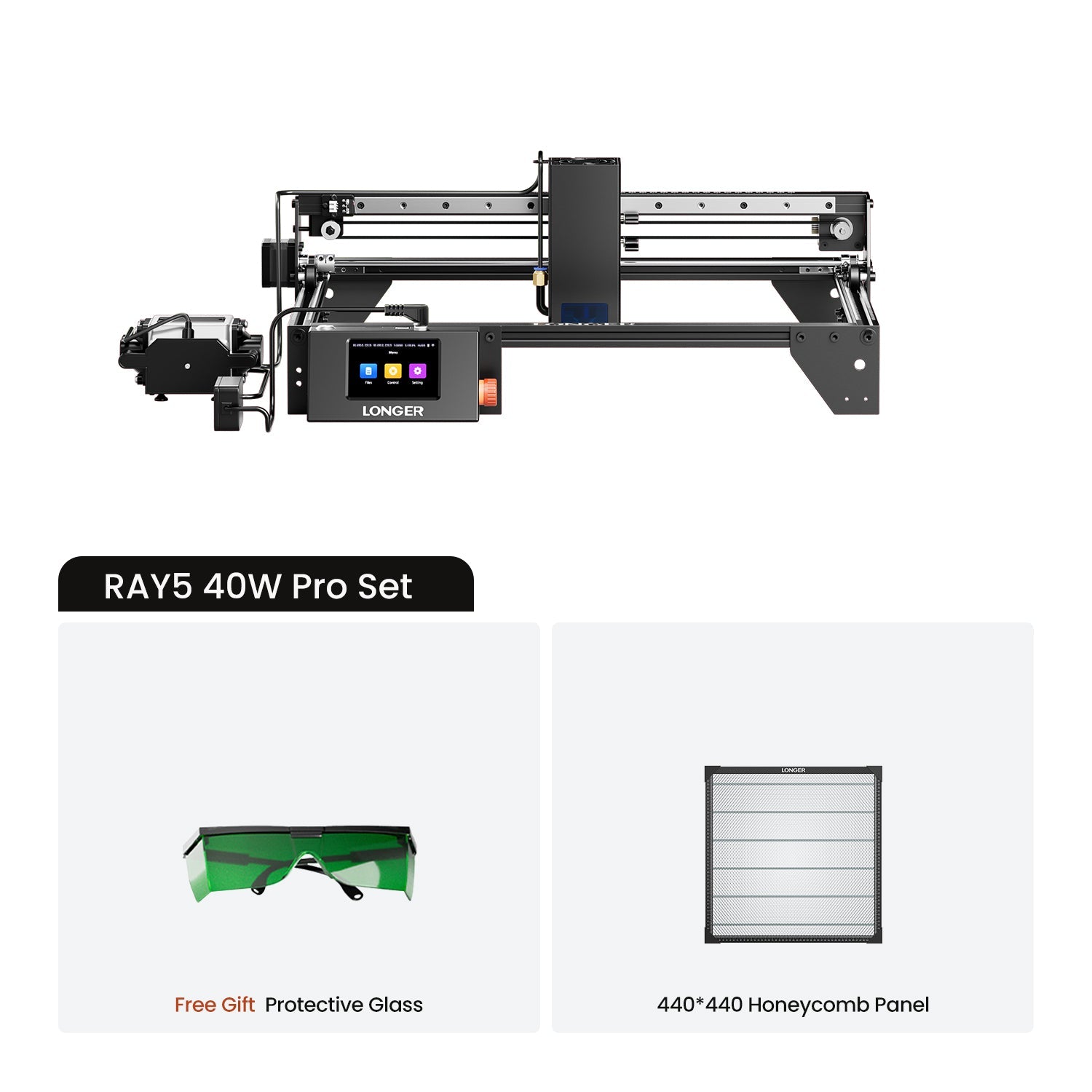

In The Box
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQ
-
The right Ray5 module depends on your engraving and cutting needs. The 5W and 10W modules are ideal for detailed engraving projects and everyday creative work, while the 20W module offers the best balance between engraving precision and cutting performance, making it the most versatile choice for most users. If you need faster processing speed and stronger cutting capability for thicker materials, the 40W module is the best option. Choose 5W/10W for fine engraving, 20W for all-around performance, and 40W for maximum efficiency and cutting power.
-
The Ray5 series supports engraving and cutting on a wide range of materials. The diode laser can cut wood, leather, MDF, paper, felt, and some dark opaque acrylic. It can also engrave wood, leather, bamboo, fabric, glass, ceramic, stone, stainless steel, and coated metals.
With the optional Ruby 1064nm IR Laser Module, Ray5 can engrave more metals, including gold, silver, brass, iron, aluminum, and stainless steel.
Actual results may vary depending on the material type, thickness, and processing settings. -
Please check whether the CH340 driver is installed correctly on your computer. After installation, open Device Manager and check if the machine appears under Ports (COM & LPT). Select the correct COM port in LightBurn and set the baud rate to 115200. Please also make sure no other software (such as LaserGRBL) is occupying the serial port. If the issue remains, please import the correct Ray5 .lbdev configuration file and try connecting again.
-
Yes! Ray5 is designed to be beginner-friendly with an easy setup and intuitive operation. You can quickly get started with LightBurn, LaserGRBL, or LaserBurn. We also provide detailed tutorials and user manuals to help you complete your creative projects with ease.
If you encounter any issues during installation or operation, our customer support team is always ready to assist you at support@longer.net. All you need is some practice and exploration to unlock more creative possibilities with Ray5.
